Product Details:
|
Material: | CPVC | Specification: | 4" |
---|---|---|---|
Length: | STANDARD | Thickness: | STANDARD |
Standard: | ASTM/DIN/ASNZ/JIS, ASTM DIN | Processing Service: | Moulding |
Product Name: | Diaphragm Valve | Body Material: | CPVC |
Usage: | Water Supply Irrigation | Size: | 1/2 Inch To 4 Inch |
Color: | White Grey | Connection: | Glue |
Valve Type: | Ball Valve | Pressure: | PN10 |
Brand: | HYMO |
item | value |
Warranty | 3 years |
Type | DIAPHRAGM VALVE |
Customized support | OEM, ODM |
Place of Origin | China |
Brand Name | HYMO |
Model Number | V010 |
Application | General |
Temperature of Media | Medium Temperature |
Actuator | Manual |
Media | Water |
Port Size | Dn15-Dn300(1/2′′-10′′) |
Gasket | EPDM |

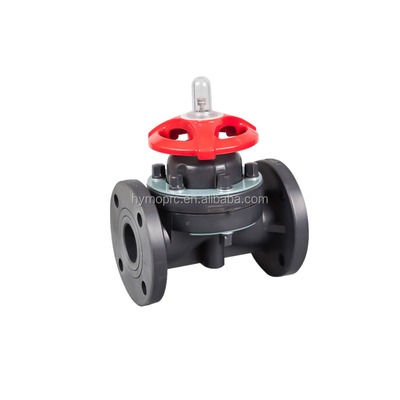

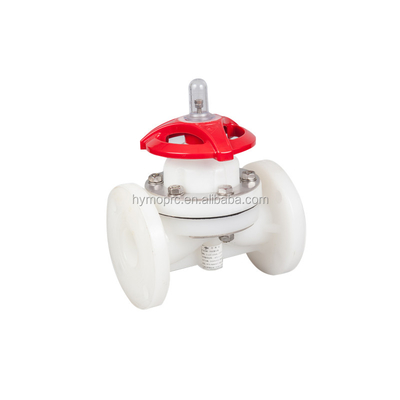

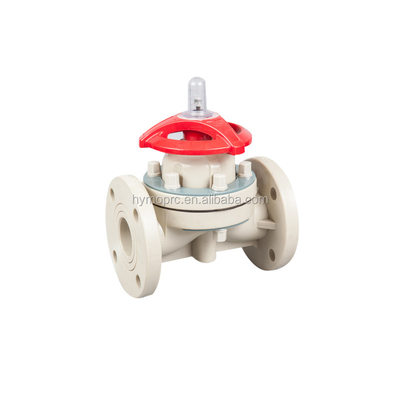

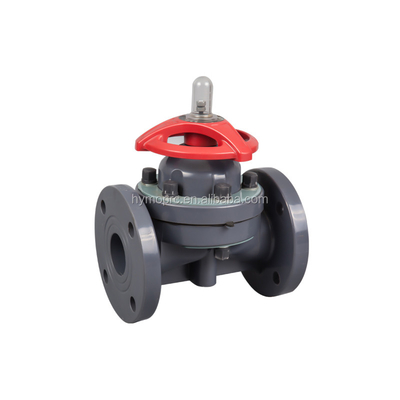

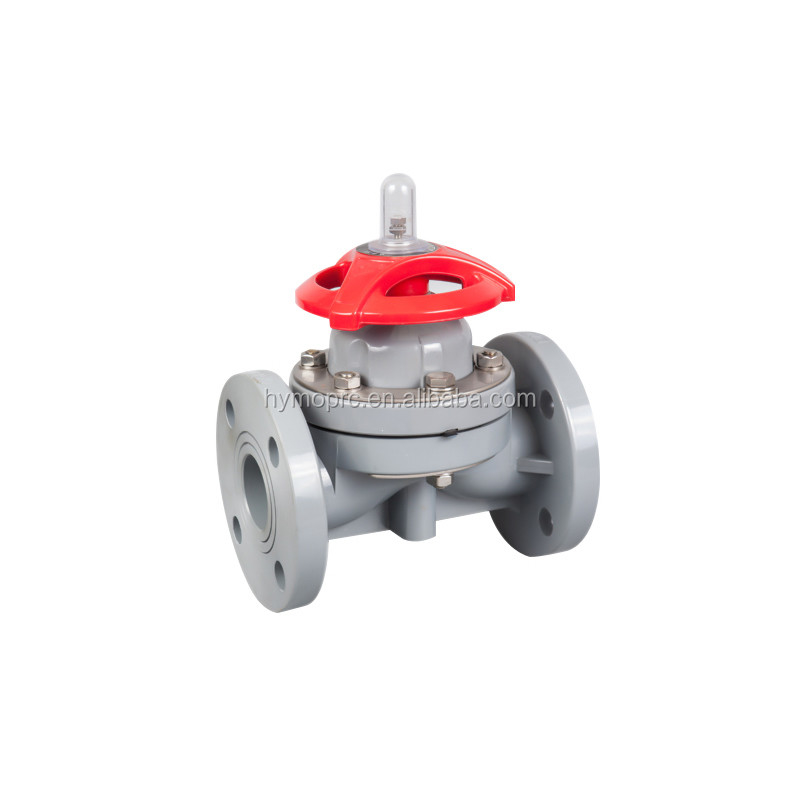

Product name | CPVC WEIR FLANGED DIAPHRAGM VALVE |
Body material | CPVC |
Usage | Chemical, acid, water, oil, etc |
Size | Dn15-Dn300(1/2′′-10′′) |
Standard | DIN, GB, ANSI, JIS |
Color | White Grey |
Connection | Flanged Diaphragm Valve |
Valve type | DIAPHRAGM VALVE |
Pressure | PN10 |
Brand | HYMO |
Material | Medium temperature | Material | Medium temperature |
FRPP | -20℃~ +90℃ | PVDF | -40℃~ +120℃ |
UPVC | -40℃ ~ +60℃ | CPVC | -40℃ ~ +95℃ |
No. | Name | Material | No. | Name | Material | NO. | Name | Material |
1 | Stud | Steel, Stainless Steel | 8 | YokeNut | HT300 Steel | 15 | Flim | EPDM.IIR |
2 | Indicator | Steel | 9 | Stem | Steel, Stainless Steel | 16 | Diaphragm | F46.PFA. PVDF.PTFE |
3 | Stopcover | PC.AS | 10 | Bonnet | FRPP,PVDF UPVC,CPVC | 17 | Pin | Steel, Stainless Steel |
4 | Washer | Steel, Stainless Steel | 11 | Flat bearing | Ball beraing | 18 | Disc | Steel, Stainless C.I.FRP |
5 | Wheel | ABS | 12 | Nut | Steel, Stainless Steel | 19 | Diaphragm | F46 |
6 | RetainingNut | FRPP Steel, Stainless Steel | 13 | Stud | Sted, Stainless Steel | |||
7 | Liningring | PP | 14 | Body | FRPP, PVDF UPVC, CPVC |
